Brown Sugar

Brown Sugar

Brown Sugar - Kit Now Available!

Output Power

30W with 6L6s, 15W with 6V6s.

Tube Compliment

(4) 12AX7s, (2) 6L6s or (2) EL34s or (2) 6V6s and (1) GZ34 (5Y3 with 6V6s).

Class

AB push-pull with with cathode bias.

Equalization

Bass, Middle, Treble, presence, and RAW controls plus BRIGHT switch.

Reverb

All-tube driven, 3-spring medium delay Accutronics tank in a padded reverb bag with shielded cables and TONE control.

Chassis

Now featuring an 18-gauge non magnetic stainless-steel chassis with TIG welded corners.

Circuitry

Hand-wired point-to-point with tinned solid-core PVC wiring, G-10 glass epoxy circuit board with brass eyelets. Carbon film resistors, Mallory M150 and CDM silver mica tone capacitors, Switchcraft jacks, Carling switches, and high-quality molded type sockets.

Transformers

Cool and quiet running Allen TP40D 180ma power transformer, TO35MT upgrade paper bobbin interleaved winding output transformer, TR reverb transformer and TRCH large choke are all U.S. made. See the TRANSFORMERS page for details.

Topology

A unique blend of a brown-era preamp (tone controls, phase inverter and presence control) with a tweed-era cathode-biased output section and wonderful blackface-era reverb. Enhanced with a bright switch, middle and RAW controls, reverb TONE control, impedance switch and the ability to use 6V6, 6L6 or EL34 power tubes for a truly unique and versatile amp with the best qualities of each era in one handsome package.

Cabinet

Finger-jointed pine with custom brown Tolex and grill cloths. Brushed brass logo, brown/ivory faceplate and black or cream barrel knobs.

Speaker(s)

Eminence Red, White and Blues 12" speaker, Eminence Legend 151 15", or (2) Eminence Copperheads 10".

Special Features

RAW mid/gain boost control, impedance switch, extension speaker jack, and TONE control for the reverb. Brown era tone controls and phase inverter with cathode bias. Blackface era reverb.

Brown Sugar

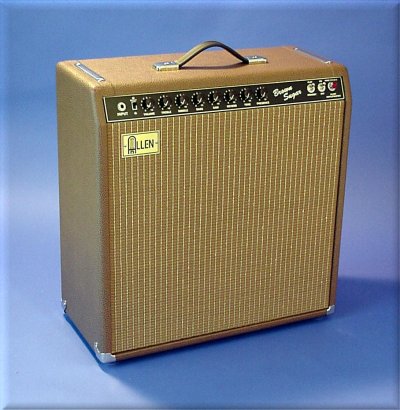

Brown Sugar 1x15 with new black/brown grill cloth

Size and Weight

1x15 Combo - 22"W x 20"H x 10"D, 53 lbs.
1x12 Combo - 22"W x 18"H x 10"D, 51 lbs.
2x10 Combo - 22"W x 20"H x 10"D, 53 lbs.
Head - 22"W x 10"H x 10"D, 32 lbs.

Price

Brown Sugar Chassis Only

$1,449

Brown Sugar Head

$1,599

Brown Sugar 1x12 Combo

$1,799

Brown Sugar 2x10 Combo

$1,899

Brown Sugar 1x15 Combo

$1,899

Options:

Other Tolex and grill cloth options available at no extra charge


Now available in kit form! See the Amp Kits page.


Matching speaker cabinets available too! See the Cabinets page.



Sound Clips

Brown Sugar Full Demo (8.3MB MP3 file - 8:40 play time)


Brown Sugar Instrumental (3.2MB MP3 file - 3:30 play time)


Thank you to Jerry Bever for the great clips.

Brown Sugar on You Tube - Cross-cut Saw cover by James Raymond Smith (playing straight into a Brown Sugar with 6L6s and an Eminence Big Ben 15" speaker, no pedals, and the bridge pickup is a Duncan broadcaster)

Brown Sugar

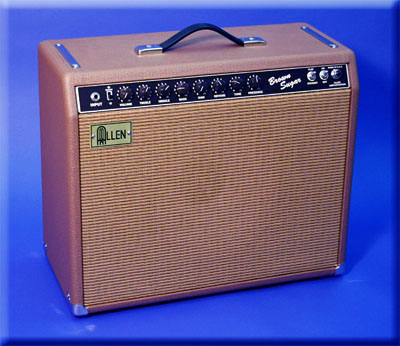

Brown Sugar 1x12 in Rough Brown/Wheat

Brown Sugar

Cream/Cinnamon 1x15 with cream knobs and
traditional Rough Brown/Wheat head with brown knobs
