Output Power

10 watts with a 6L6 power tube or 6 watts with a 6V6 power tube (8 ohm speaker load).

Tube Compliment

1 6V6 or 6L6 power tube, 2 12AX7 and 1 12AT7 preamp tube.

Class

Class A single-ended.

Equalization

Treble, Bass, and foot-switchable RAW control.

Chassis

Aluminum chassis.

Transformers

TP24 power transformer is made in Chicago. TO11S Heyboer paper stick wound interleaved output transformer. See the TRANSFORMERS page for details.

Topology

Loosely based on the blackface Champ™ with AB763ish reverb added. Beefed up transformer set and power supply for use with 6V6/6L6 power tube and addition of a foot-switchable RAW control. Master volume control.

Cabinet

Finger-jointed pine cabinet with Birch plywood baffle and MDF back panels that don't warp. Reinforced black strap handle, bottom chrome corners and chassis straps.

Speaker(s)

WGS G8C for the 1x8, Eminence Copperhead for the 1x10, and Eminence Red, White and Blues for the 1x12.

Special Features

Dual input jacks (normal and -3db), master volume control, tube driven spring reverb using the 9" Accutronics tank, extra gain stage for better overdriven tones and a foot-switchable RAW control to go from blackface scooped mids to thicker 5F1 tweed type tone. Now with a 6V6/6L6 selector switch on back for 6 watts or 10 watts!

Size and Weight

1x8 combo - 17"W x 14"H x 9"D, 21 lbs.
1x10 Combo - 17"W x 17"H x 9"D, 24 lbs.
1x12 combo 20"W x 18"H x 9"D, 30 lbs.
Head - 17"W x 8-1/2"H x 8-1/2"D, 19 lbs.

Price

Chassis Only

$999

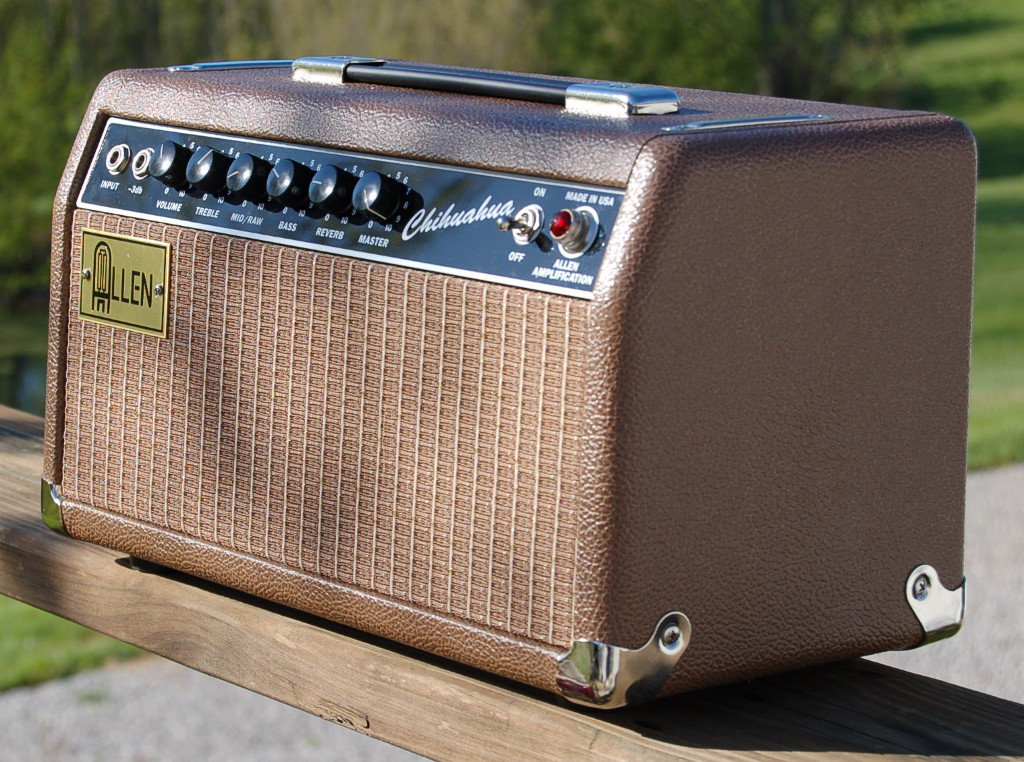

Head

$1,249

1x8 Combo

$1,279

1x10 Combo

$1,299

1x12 Combo

$1,349

Other Tolex and grill cloth options available at no extra charge

Also available in kit form! See the Kits & Cabs page.
